Descripción
For Cost-Effective Handling - Efficient and Individually Integrated
EPKE single-girder overhead traveling cranes are the most economical entry-level models in the world of Demag cranes. They convince with their high degree of cost-effectiveness and are an optimum solution for light loads and smaller spans. This is achieved above all by the use of rolled steel sections as crane girders and specially developed wire rope or chain hoist trolleys. But EPKE has even more advantages:

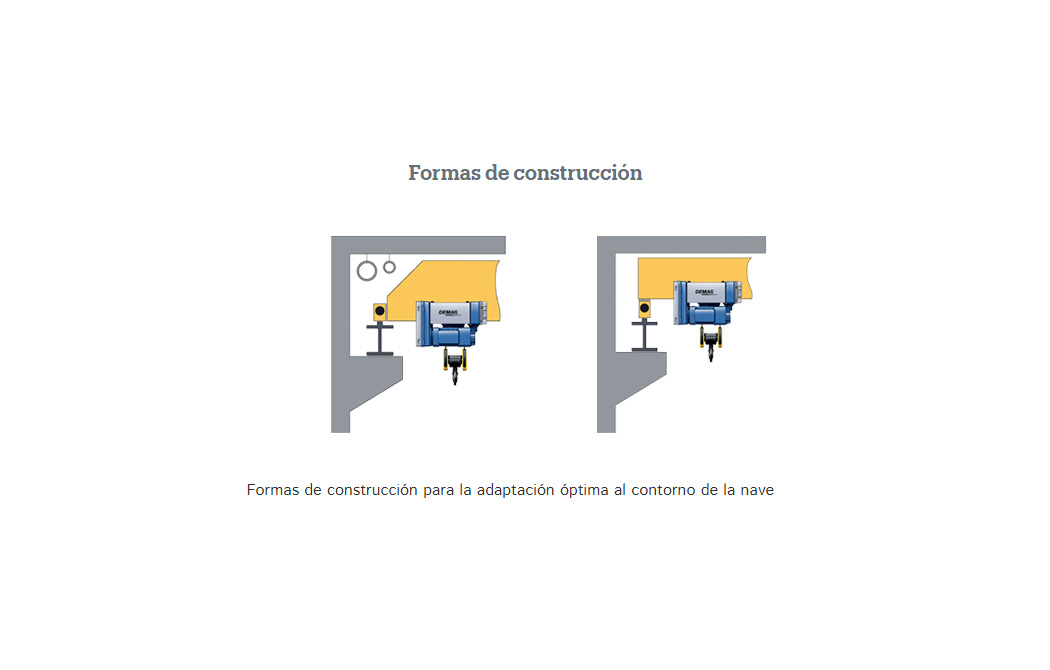

- Travel mechanisms optimally adapted to the form of construction.
- A solid-walled solid-wall girder in accordance with DIN standard for optimum load distribution.
- Efficient and fatigue-free load handling thanks to ergonomic control elements.
- Travel movements with a minimum of sway for smooth handling and precise positioning.
- Crane components with high reliability and safe operation.
- Optionally with DR wire rope hoist or DC chain hoist
Especificaciones
Advantages at a Glance
High Profitability
- Reduced construction costs and subsequent expenses due to optimized construction forms.
- Wheels made of highly wear-resistant nodular cast iron GGG 70 with self-lubricating properties.
- Favorable travel characteristics and minimal wear of the crane runway and wheels due to maintenance-free drives.
- Crane components designed for long service life ensure high reliability and operational safety.
Stable Performance
- Heavy-duty solid-wall girder in accordance with DIN standard for optimum load distribution.
- Optimum utilization of room height and surfaces due to compact trolley design with low approach heights and large hook stroke.
- Separately movable control unit on the crane girder with display for system monitoring.
- Efficient and fatigue-free handling of loads due to increased trolley travel speed and ergonomic control handle.
- Travel movements with a minimum of sway for smooth handling and exact positioning of loads (in the version with infinitely variable trolley drive as standard).
Individual Configuration
- Optimum integration into existing and new halls.
- Separately movable control unit on the crane girder with display for system monitoring.
- Radio control with display and proportional pushbutton possible (optional).
- Radio control with power and signal transmission via the energy chain system.
- Power supply to the trolley via highly flexible flat contact line with protective conductor.
Technical Data
EPKE single-girder overhead traveling crane with laminated profile girder:
|
Load capacity [t]
|
up to 12,5 t
|
|
Axle spans [m]
|
up to 18 m
|
|
Crane travel speed [m/min]
|
up to 40
|
|
Trolley travel speed [m/min]
|
up to 30
|
|
Hoisting speed [m/min]
|
up to 12,5
|
Opciones
Equipment Options
With a wide range of equipment options, we adapt our standard cranes to your individual requirements:
- An adjustment device for varying the height of the control handle makes it easier to attach loads.
- Control via a cable-connected switch.
- Bi-directional radio control with proportional pushbutton control.
- Smooth-running control helps to avoid pendulum movements.
- Trolleys with horizontal guide rollers reduce the transmission of oblique forces to the raceway.
- Operating limit switches and slack rope detection relays protect the hoist mechanism and load from damage.
- Circumferential control prevents collisions in the event of obstacles in the travel range of the trolley.
- Collision protection and crane spacers enable safe operation when several cranes are operating on the same runway.
- Equipped with two trolleys, long and bulky loads can be transported easily.
- A comprehensive range of load handling attachments for the most diverse requirements.
